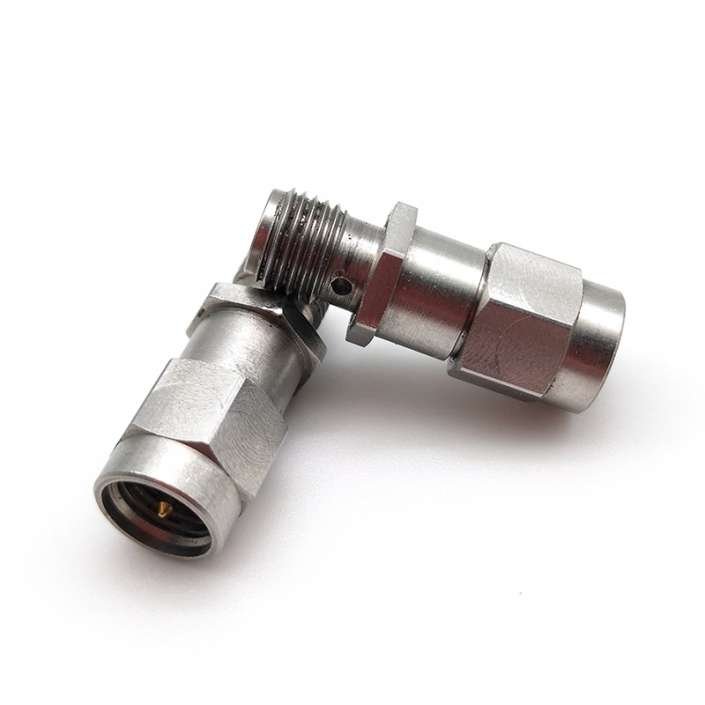

2W Fixed Attenuator DC-18G SMA Male to SMA Female 1-40dB

  • Product No.: FAT-2SAMF-18G-XXD-1 (XX=1-40)
  • Spec.: 2W, DC-18GHz, 1-40dB or customized, SMA Male to  SMA Female
  • Features: Low VSWR, Low Attenuation Accuracy
Data Sheet Download

Description

Electrical & Mechanical Specifications
Frequency Range (MHz) DC-18GHz
Attenuation (dB) 1-10 15-30
Accuracy (dB) ±0.5 ±1.0
VSWR ≤1.35
Power Capacity (W) 2 (Average)
Impedance (Ohm) 50
Connector Interface SMA Male to SMA Female
Body Stainless Steel
Environmental Specifications
Temperature -55℃~+125℃
Relative Humidity Up to 95%
Dimension (mm) 22*Ø8
Net Weight (kg) 0.005

Remark: For more specifications, please contact us.

Applications: Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.

Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
