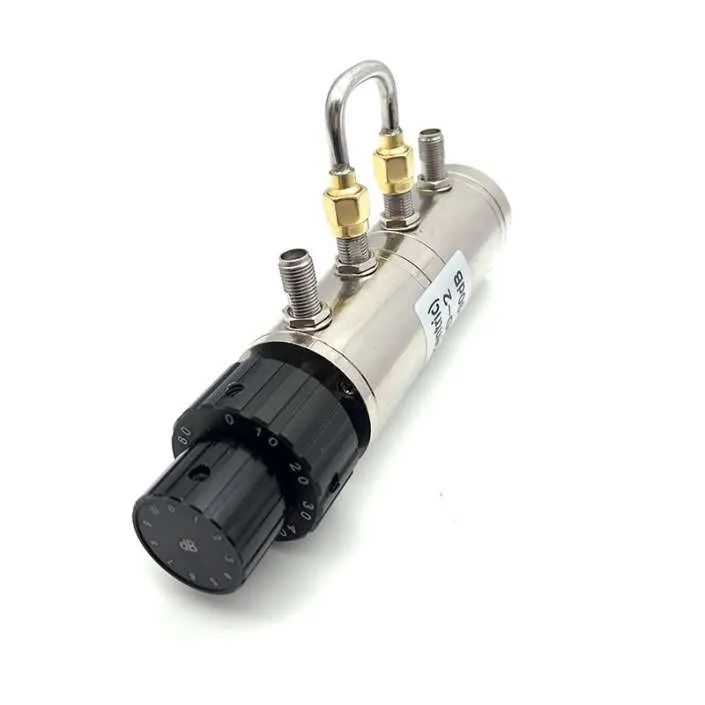

2W Rotary Attenuator 90dB with 1dB Step 6G SMA-Female (Series Type)
- Product No.: MA-5SAF-6G-90D-2
- Spec.: 2-5W, DC-6GHz, 1-90dB, SMA Female to SMA Female
- Features: Low VSWR, Low Attenuation Accuracy
Description
| Electrical Specifications | |||||
| Frequency Range | DC-6G | ||||
| Impedance(Ω) | 50 | ||||
| Power Capacity | 2-5 Watt | ||||
| VSWR | ≤1.50:1 | ||||
| Attenuation (dB) | 1-90 | ||||
| Tolerance (dB) | ±0.5~±5% | ||||
| General Specifications | |||||
| RF Connector Interface | SMA Female to SMA Female | ||||
| Operating Temperature(℃) | -40~ +80 | ||||
Remark: For more specifications, please contact us.
Applications
Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.
Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
