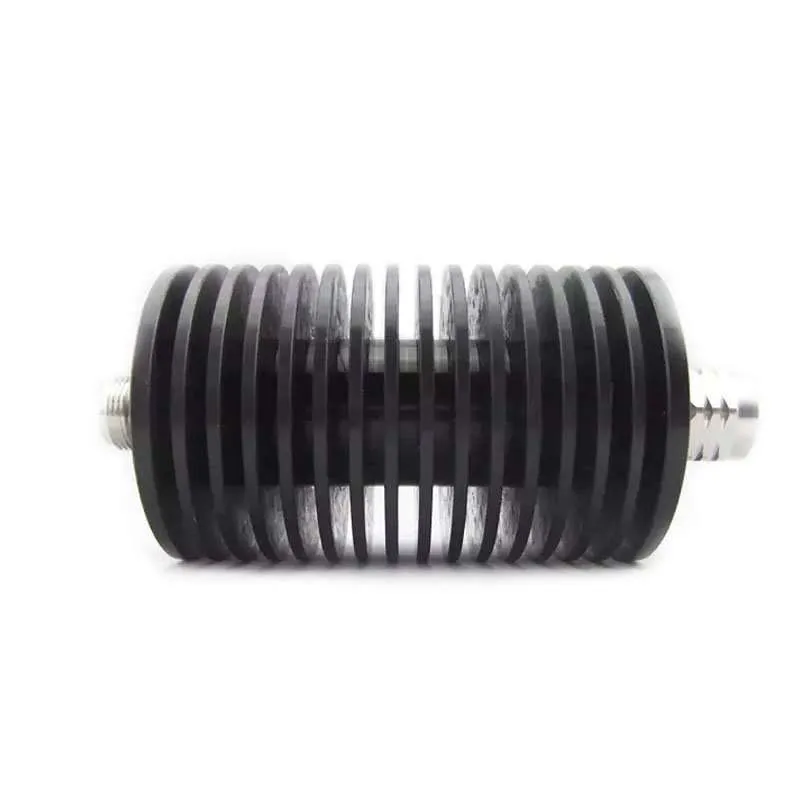

50W Fixed Attenuator 1-60dB DC-3G DIN Male to DIN Female

  • Product No.: FA-50DMF-3G
  • Spec.: 50W, DC-3GHz, 20dB or Customized, DIN Male to DIN Female
  • Features: Low VSWR, Low Attenuation Accuracy

Description

Electrical Specifications
Frequency Range DC-3G
Impedance(Ω) 50
Power Capacity10 50Watt
VSWR ≤1.20:1
Attenuation (dB) 1-60dB or Customized
Tolerance (dB) ±0.5~±2.0
General Specifications
RF Connector Interface DIN Male to DIN Female
Operating Temperature(℃) -40~ +80

Remark: For more specifications, please contact us.

Applications

Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.

Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.
