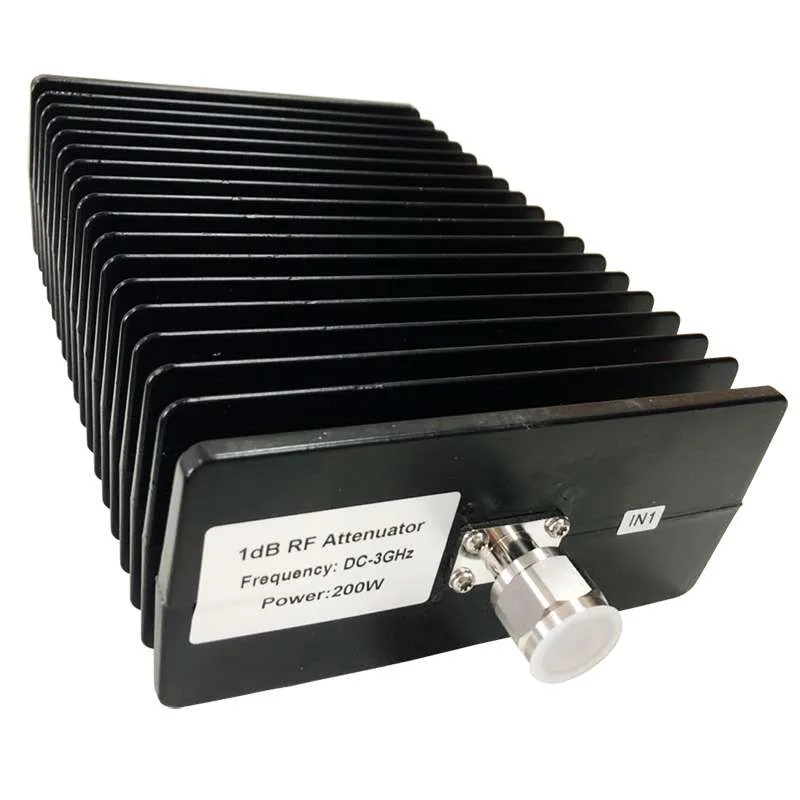

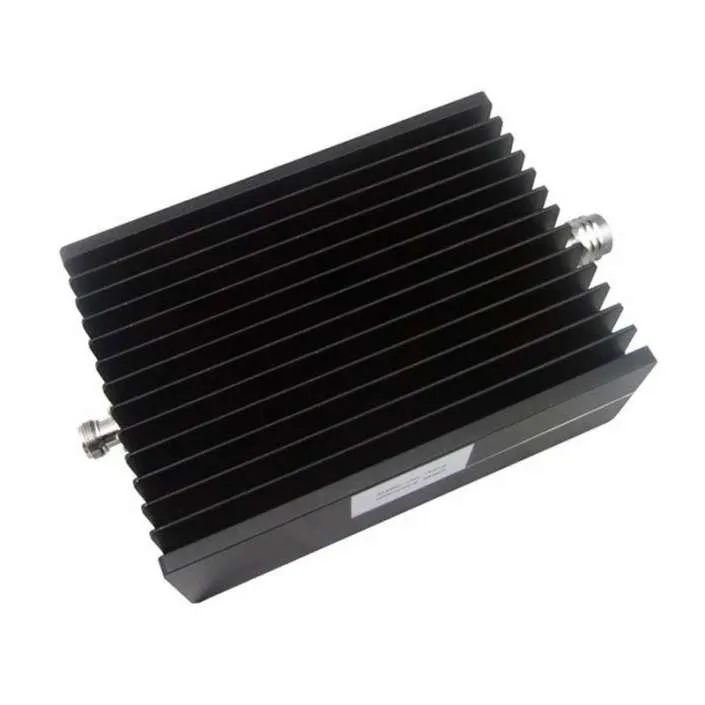

200W Fixed Attenuator 3-60dB 3G N Male to N Female
- Product No.: FA-200NMF-3G-XXD (3-60)
- Spec.: 200W, 3-60dB, DC-3GHz, N Male to N Female
- Features: Low VSWR, Low Attenuation Accuracy
Description
| Electrical Specifications | ||||||||
| Frequency Range | DC-3G | |||||||
| Impedance(Ω) | 50 | |||||||
| Power Capacity | 200 Watt | |||||||
| VSWR | ≤1.20:1 | |||||||
| Attenuation (dB) | 3-6 | 10 | 20 | 30 | 40 | 50 | 60 | |
| Tolerance (dB) | ±0.5 | ±0.8 | ±1.0 | ±1.0 | ±2.0 | ±2.5 | ±3.0 | |
| General Specifications | ||||||||
| RF Connector Interface | N Male to N Female | |||||||
| Application | Indoor | |||||||
| Operating Temperature(℃) | -40~ +80 | |||||||
Remark: For more specifications, please contact us.
Application:
- Mobile Communication Network Optimization and Indoor distribution system.
- Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
- Radar, Electronic Navagation and Electronic Confrontation.
- Aerospace Equipment systems.
